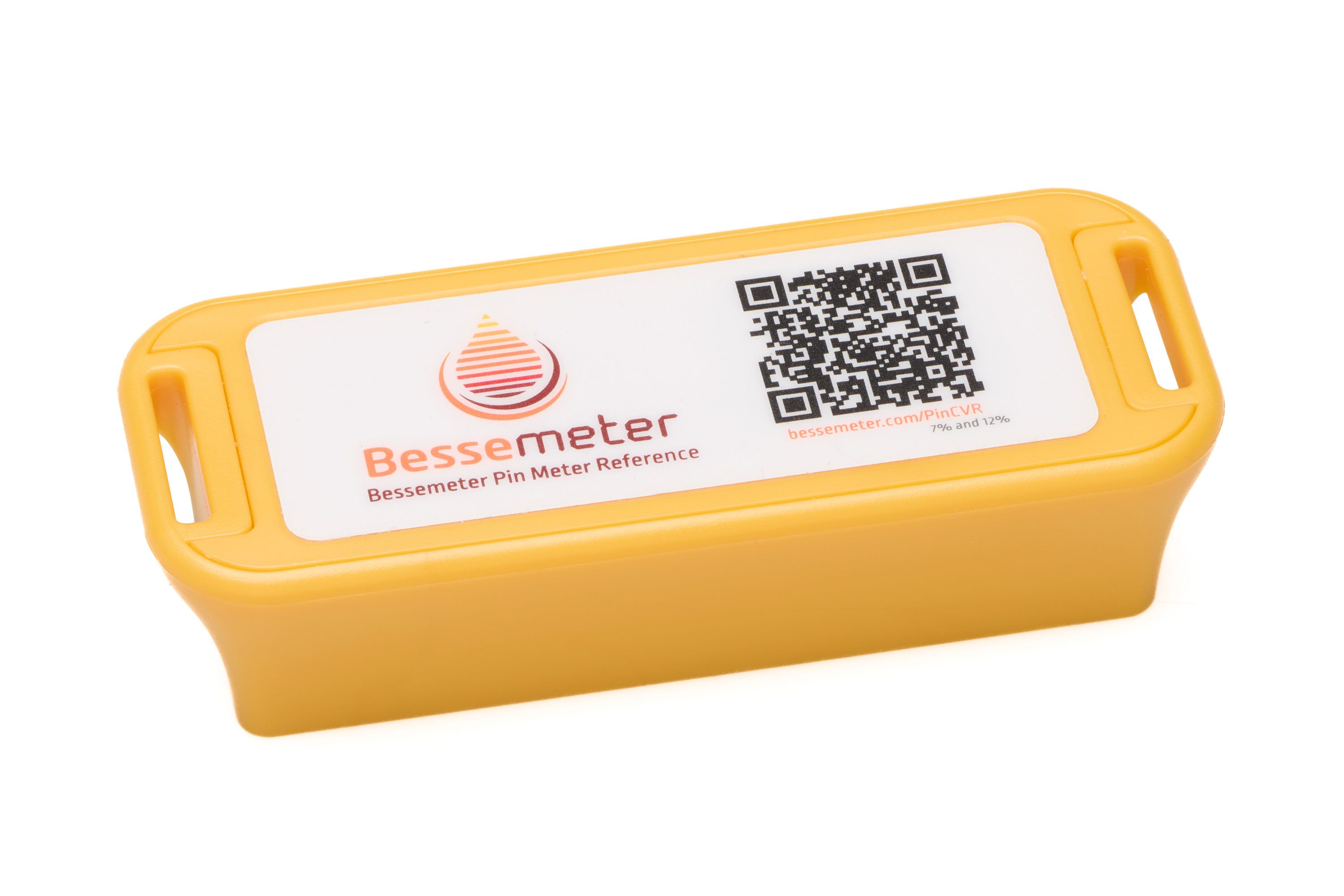

PT-83 Calibration Verification Reference (CVR)

$39.00

  • Verify your PT-83 meter’s calibration with confidence
  • Portable and simple to use—no tools or setup needed
  • Both CVR options are designed for Material Group 2 setting on the PT-83

Designed to simulate specific moisture levels, this pin moisture meter Calibration Verification Reference (sold separately) allows you to quickly confirm your meter is reading within factory specifications.** There’s no guesswork required with this optional accessory for checking the calibration of your Bessemeter PT-83 Pin Moisture Meter.

Bessemeter offers two CVR models:

  • 7% and 12% reference points—designed for low-humidity conditions, i.e. dry indoor wood or fine woodworking
  • 12% and 22% reference points—designed for high-humidity conditions, i.e. construction sites

This gives you the flexibility to choose the CVR that best aligns with your typical measurement needs.

**CVR verifies moisture meter calibration but does not calibrate a moisture meter

Features

  • Quickly verify your PT-83 is reading within factory specifications
  • Compatible with the Bessemeter PT-83 Pin Moisture Meter
  • No batteries, tools, or setup required
  • Compact and portable for use in the shop or on the jobsite

Whether you're a professional woodworker, flooring installer, inspector, or DIY enthusiast, routine calibration verification helps ensure your moisture measurements remain accurate and dependable.

Shipping & Support

We currently ship only within the United States. At this time, international shipping is not available. Find more details about shipping information here.

We want you to be satisfied with your purchase. If you are not completely satisfied with any Bessemeter product, you may return it within 30 days to request a refund or replacement. Learn more details about the Return Policy here.

For technical support, warranty-related service, or assistance in using your PT-83 meter or accessories, email us at info@bessemeter.com.

Specifications

Dimensions:

  • Length: 3.375 inches (8.6 cm)
  • Width: 1.33 inches (3.38 cm)
  • Thickness: 0.75 inches (1.91 cm)

Weight:

  • 0.88 ounces (25 g)

MC Verification Range:

  • Choose from 7% to 12% or 12% to 22%

Frequently Asked Questions

What is a Pin Meter Calibration Verification Reference?

A tool used to check if a pin-type wood moisture meter is calibrated correctly to factory specifications.

Does this recalibrate my PT-83 moisture meter?

The CVR does not recalibrate the PT-83 moisture meter. It verifies that the meter is calibrated. If the meter isn’t calibrated, it needs to be sent to the manufacturer to be recalibrated. For assistance in using your PT-83 meter or accessories, call Bessemeter toll-free at 844-888-5280.

Which moisture meters is it compatible with?

This CVR is compatible with Bessemeter’s PT-83 pin moisture meter.

How do I use the Pin Meter Calibration Verification Reference?

To verify the calibration of your PT-83, you can use either of the two calibration verification reference options. Choose the one that best fits your moisture range requirements and avoid any static prone environments like carpet or low humidity spaces during testing.

For both CVRs, you’ll need to

  • Turn on the PT-83 by pressing the POWER/HOLD button.
  • Press the MODE button until mode 2 is selected.
  • Remove the pin protector cap.

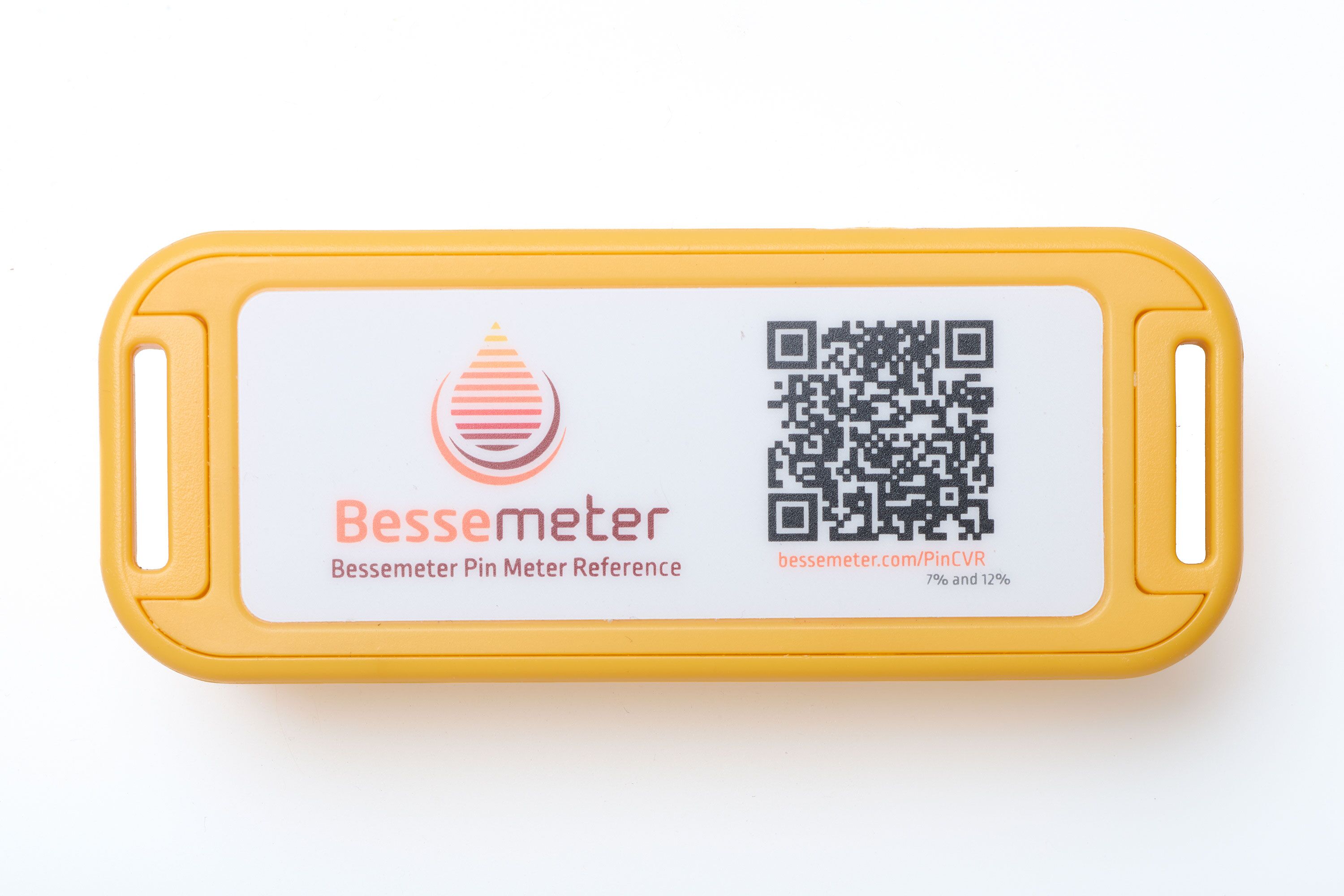

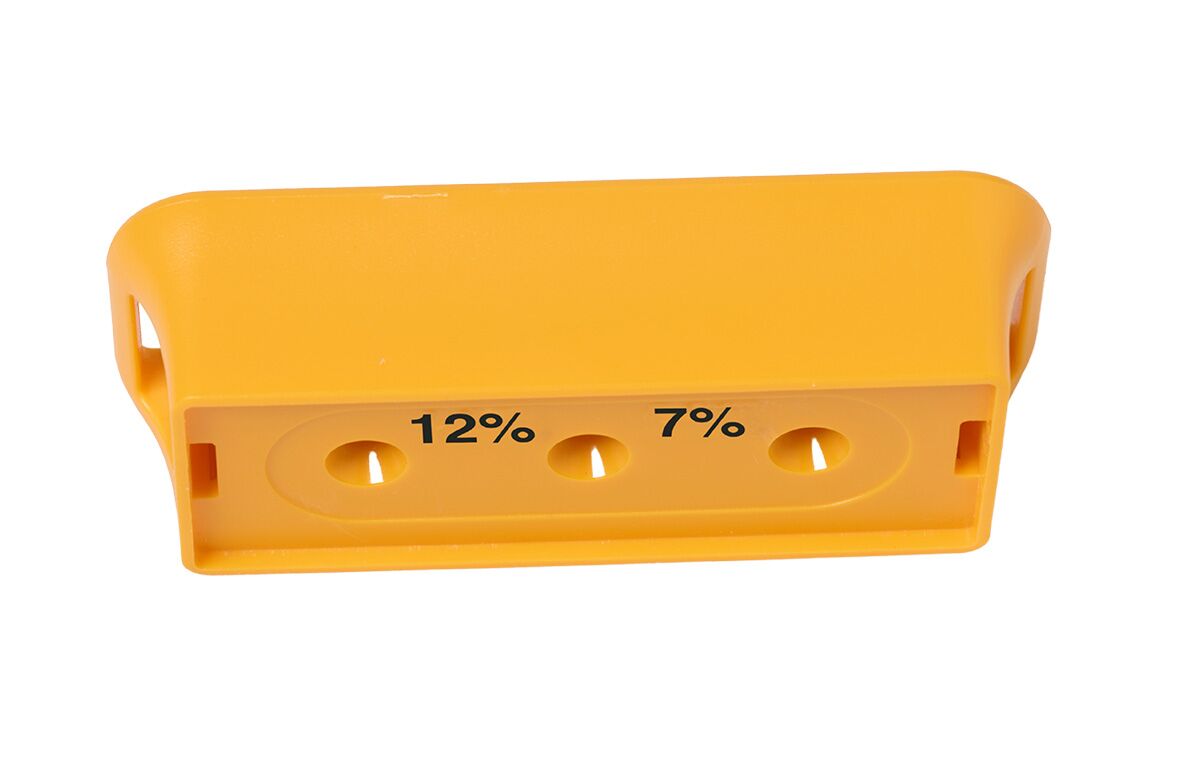

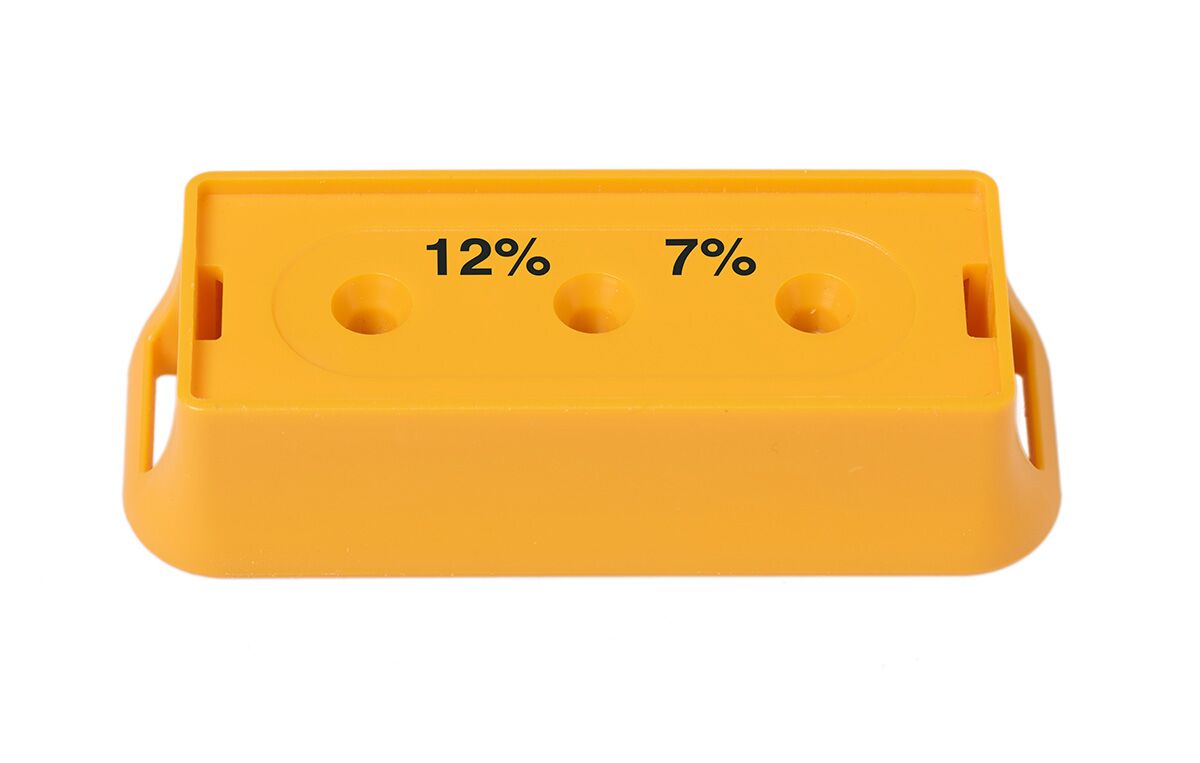

Option 1: 7% and 12% Calibration Verification Reference

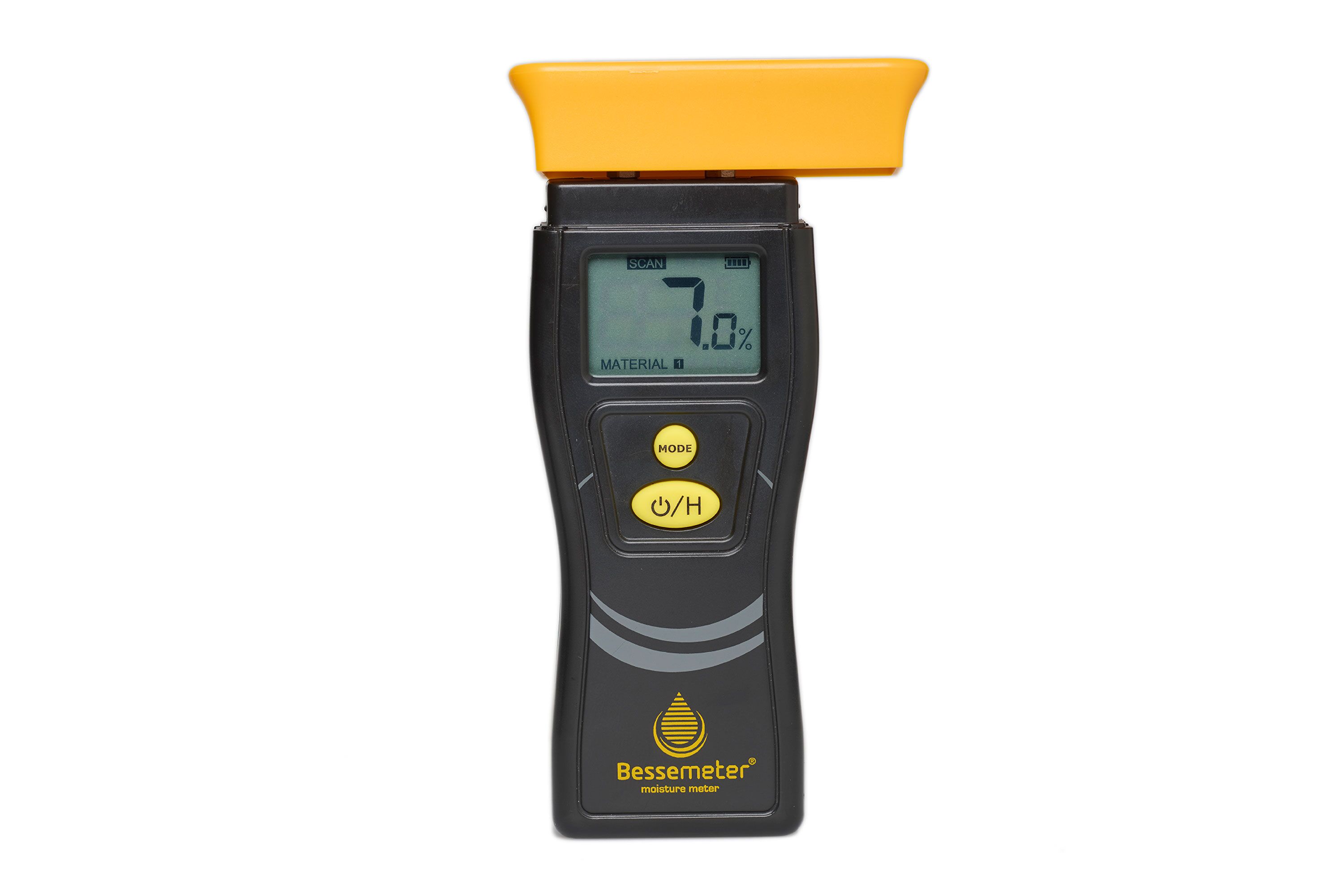

7% Calibration Point

  • Place the meter’s pins firmly onto both the 7% contact and the middle contact.
  • The reading should be between 6.9% and 7.1%.

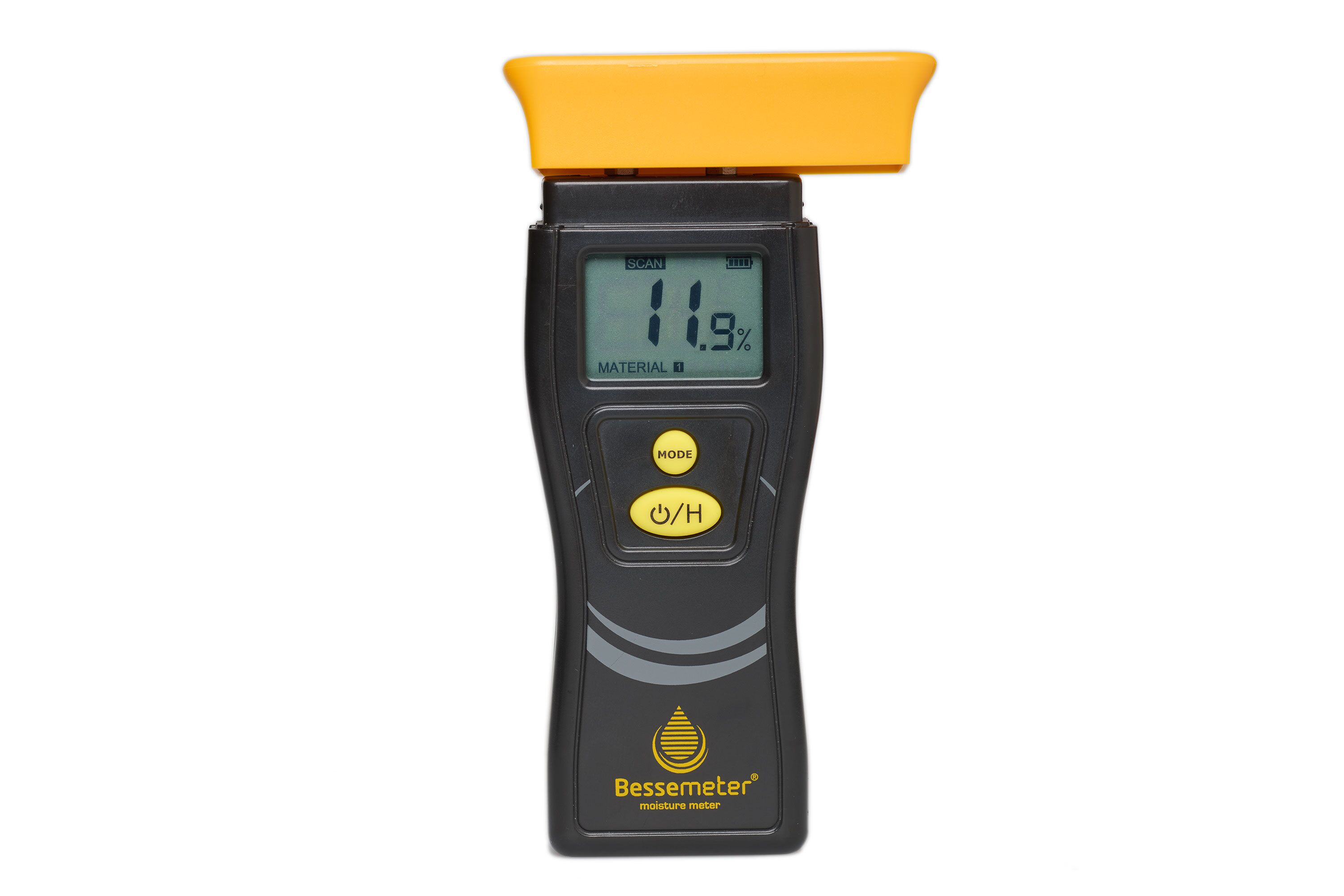

12% Calibration Point

  • Place the meter’s pins firmly onto both the 12% contact and the middle contact.
  • The reading should be between 11.9% and 12.1%.

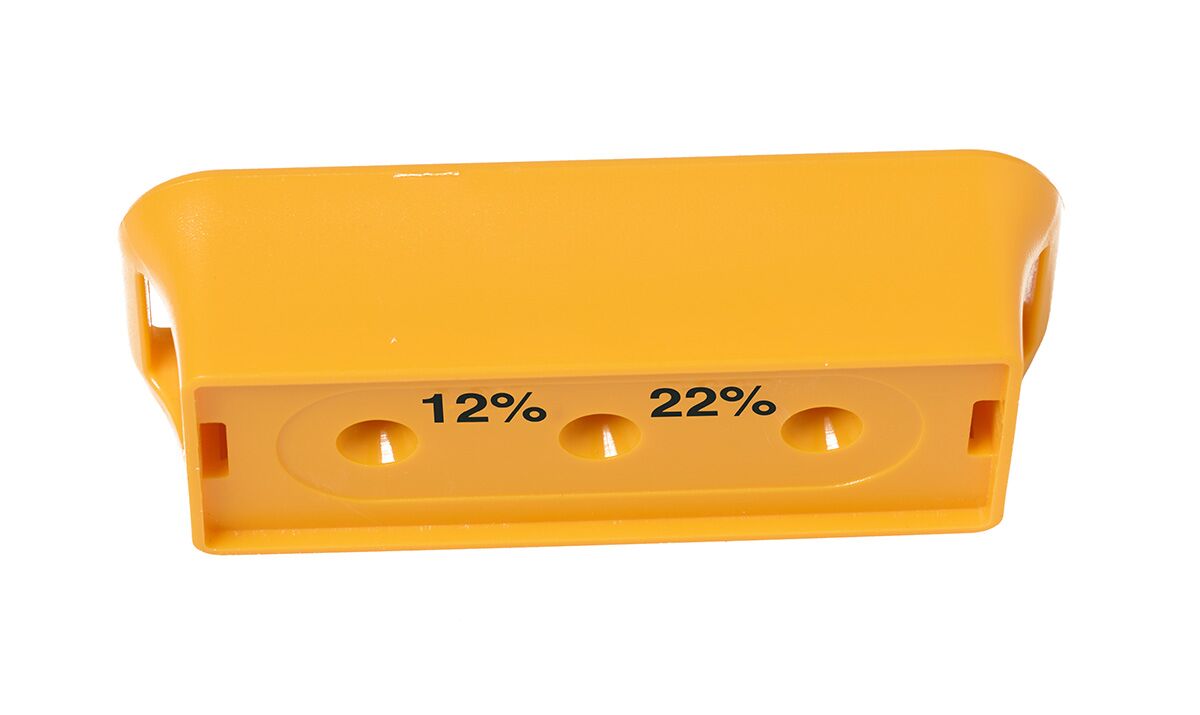

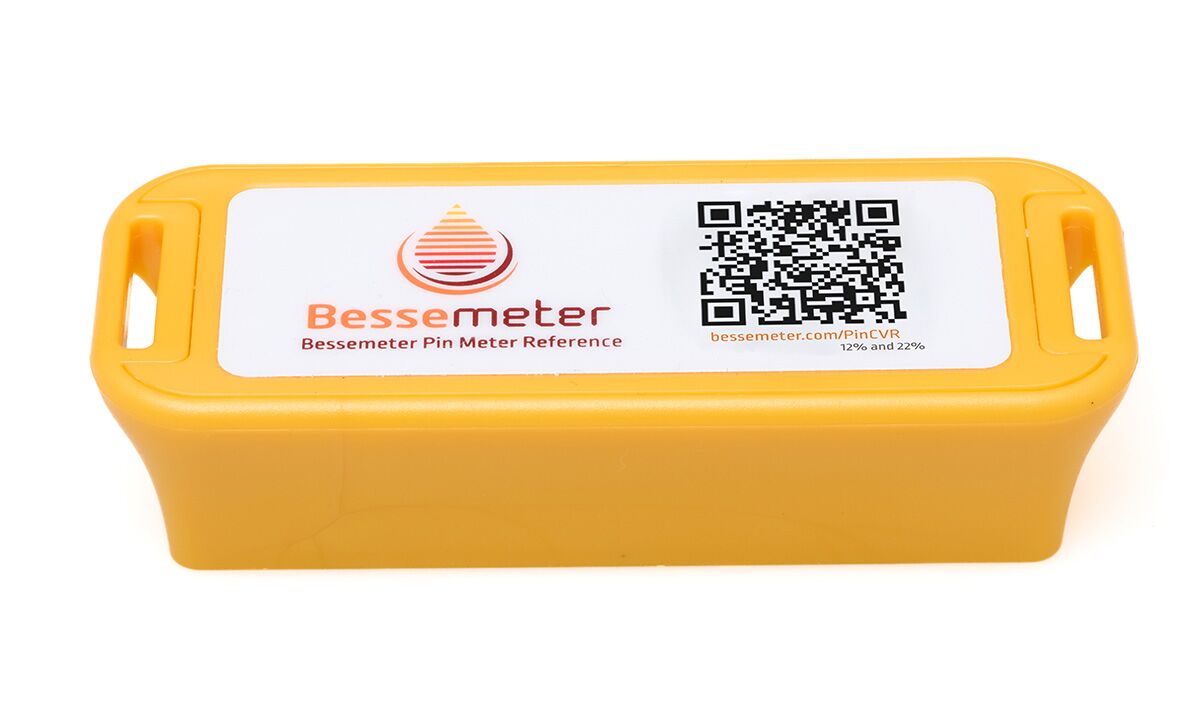

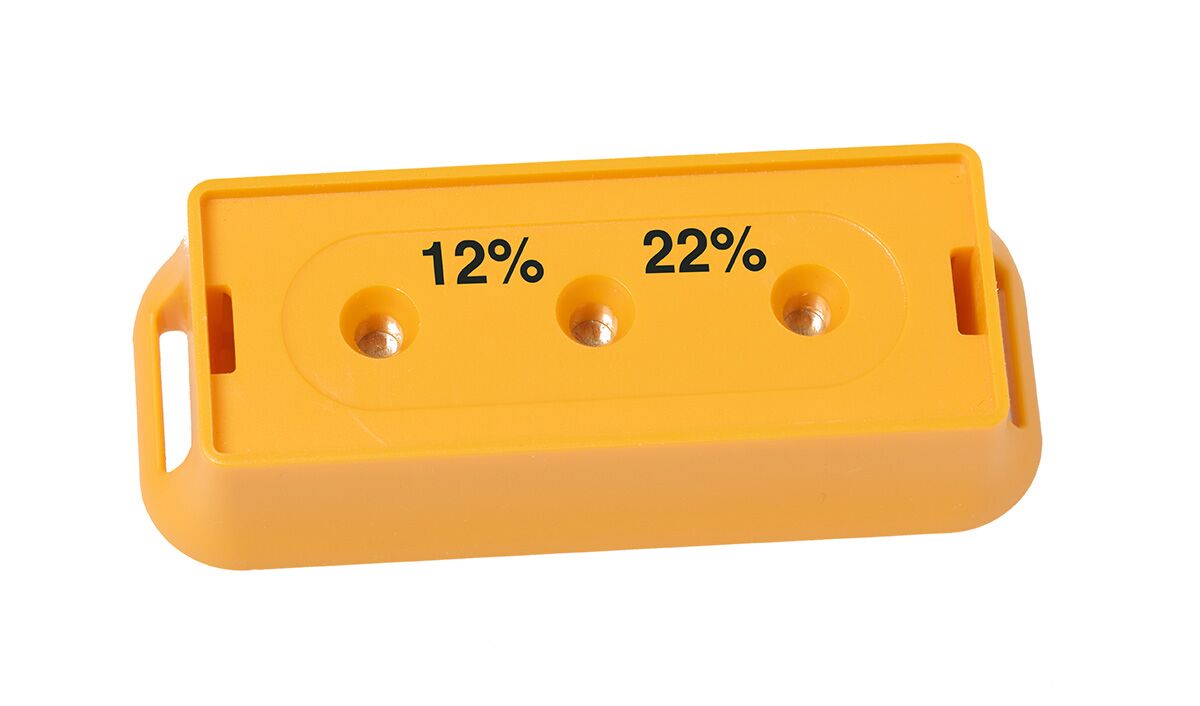

Option 2: 12% and 22% Calibration Verification Reference
12% Calibration Point:

  • Place the meter’s pins firmly onto both the 12% contact and the middle contact.
  • The reading should be between 11.9% and 12.1%.

22% Calibration Point

  • Place the meter’s pins firmly onto both the 22% contact and the middle contact.
  • The reading should be between 21.9% and 22.1%.

Why should I verify my moisture meter's calibration?

Verifying a moisture meter’s calibration means knowing that your moisture meter’s readings are accurate. Accuracy means fewer costly moisture measurement errors and preventing financial loss. Verification = confidence.

How often should I verify my moisture meter's calibration?

This depends on how often you use your moisture meter and under which conditions. But in general, there are multiple scenarios that call for verifying meter calibration:

  • Physical impact: if the meter is dropped, hits a hard object or is handled roughly.
  • Environmental stress: if the environment in which the meter is used or left in high temperatures.
  • Strange readings: if the moisture readings are inconsistent or false.
  • Power up: immediately after you’ve changed the batteries on your meter.

Do I need one if my PT-83 is brand new?

The PT-83 pin moisture meter comes calibrated out of the box.

How accurate is the calibration reference?

For accurate readings, make sure the pins are making firm contact with the correct calibration points on the CVR and that the moisture meter is set to mode 2.

Will worn or bent pins affect calibration results?

Worn or bent pins may interfere with the pins making good contact with the correct contact points on the CVR.

Does temperature affect the calibration check?

Theoretically, it could, but normally this isn’t something to be concerned with. It’d take very high temperatures (higher than the units would normally encounter) to affect the calibration block or readings.

What if my PT-83 fails the calibration check?

If readings fall outside the expected range, first double check that the pins are making firm contact with the correct calibration points and that the meter is still set to mode 2.

If readings are still off, then the moisture meter will need to be recalibrated. To do this, the moisture meter has to be sent back to the manufacturer. The manufacturer will know the standards, specific procedures, and specialized equipment needed to readjust the device.

For assistance in using your PT-83 meter, email us at info@bessemeter.com.

Is this CVR compatible with other brand pin meters?

This CVR is specifically designed for Bessemeter’s PT-83 pin wood moisture meters.

Easily Verify Your PT-83 Calibration

Learn how to verify the calibration of your Bessemeter PT-83 Pin Wood Moisture Meter in this step-by-step tutorial. Proper calibration is essential to ensure your readings remain accurate and reliable for every project. Whether you’re a professional woodworker, flooring installer, or hobbyist, this guide will help you get the most consistent performance from your PT-83.
